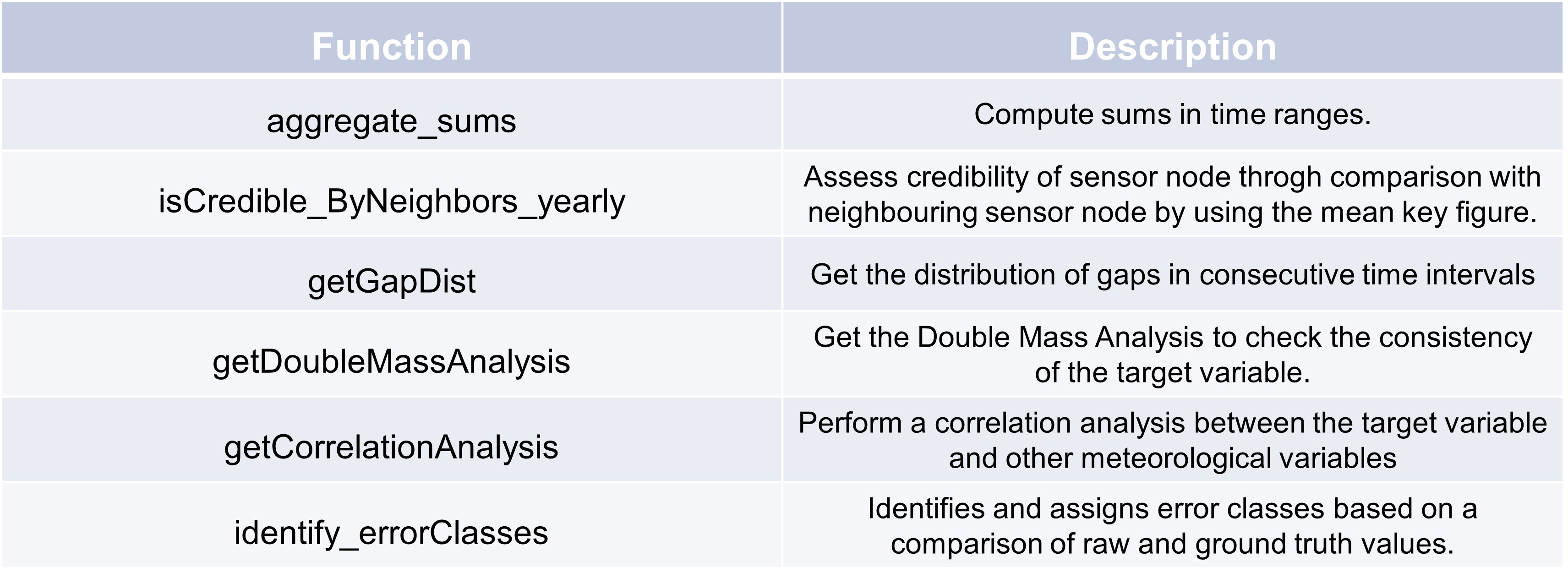

General exploration methods

Aggregate sums

This function is designed to compute the sum of values for each column in a dataframe, aggregated by a specified time frequency (yearly, quarterly, or monthly). This is useful for summarizing time-series data by different time intervals. Here’s an example of how to use the ‘aggregate_sums’ function:

Aggregate sums of a dataframe

>>> # Step 1: Generate a date range for three consecutive years
>>> date_range = pd.date_range(start='2021-01-01', end='2021-12-31', freq='D')
>>> # Step 2: Create random data for the three columns
>>> np.random.seed(42)  # For reproducibility
>>> data = np.random.randint(0, 18, size=(len(date_range), 1))
>>> # Step 3: Combine the date range and the data into a DataFrame
>>> df = pd.DataFrame(data, index=date_range, columns=['Column1'])
>>> TSCC.exploration.aggregate_sums(df, freq = "Q")
        Column1
2021-03-31  753
2021-06-30  667
2021-09-30  713
2021-12-31  754

As expected the new dataframe has now four rows with sums of each quarter.

Credible by neighbours

The purpose of this function is to assess the credibility of a sensor’s data by comparing it with the data from neighboring sensors on a yearly basis. The function determines whether the values from the sensor in question deviate significantly from the mean values of its neighbors, using a specified deviation threshold.

Comparing with neighbour sensors

>>> # Step 1: Generate a date range for three consecutive years
>>> date_range = pd.date_range(start='2021-01-01', end='2026-12-31', freq='D')
>>> # Step 2: Create random data for the three columns
>>> np.random.seed(42)  # For reproducibility
>>> data = np.random.randint(0, 18, size=(len(date_range), 2))
>>> # Step 3: Combine the date range and the data into a DataFrame
>>> df = pd.DataFrame(data, index=date_range, columns=['Column1','Column2'])
>>> TSCC.exploration.isCredible_ByNeighbors_yearly(series = df["Column1"], df_neighbors = df[["Column2"]], threshold=0.04)
2021    False
2022     True
2023     True
2024    False
2025     True
2026     True
dtype: bool

In this case only for four years the observations of the node are in credible range, because of the reduction of the threshold value to 4%.
